Free Template · from the makers of NominalQC, QC software for small manufacturers
Free 8D report template for Excel
The customer just asked for an 8D — here’s the whole thing, ready to fill: D0 through D8 with the fields a customer SQE actually checks, a complete worked example showing the expected depth, and a register that tracks every 8D with automatic IDs and overdue flags. Prints one page wide.
This log, without the spreadsheet
NominalQC’s guided 8D, 5-Why, and fishbone worksheets live inside the CAPA — and print a customer-submittable 8D report under your own logo.
Try the live demoOpens on the real app with seeded data · no signup, no email · read-only · from $29/mo when you’re ready.
Free template — no email, no signup.
Prefer it in your inbox, with two short notes on using it?
What’s in the download

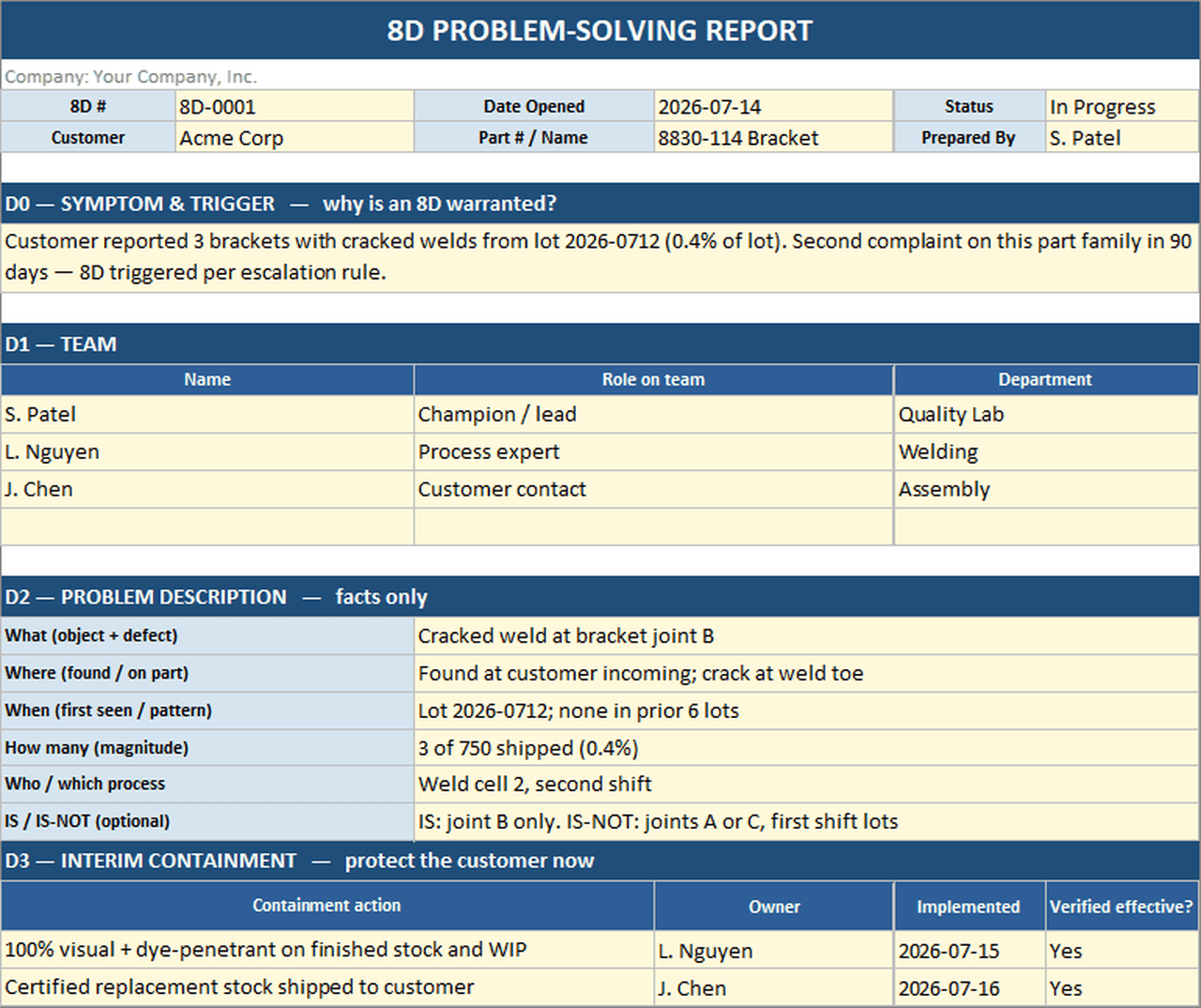

- All eight disciplines on one printable form: D0 trigger, D1 team, D2 problem description (5W2H + IS/IS-NOT), D3 containment with verification, D4 verified root cause with escape point, D5–D6 corrective actions and validation, D7 systemic prevention checklist, D8 closure

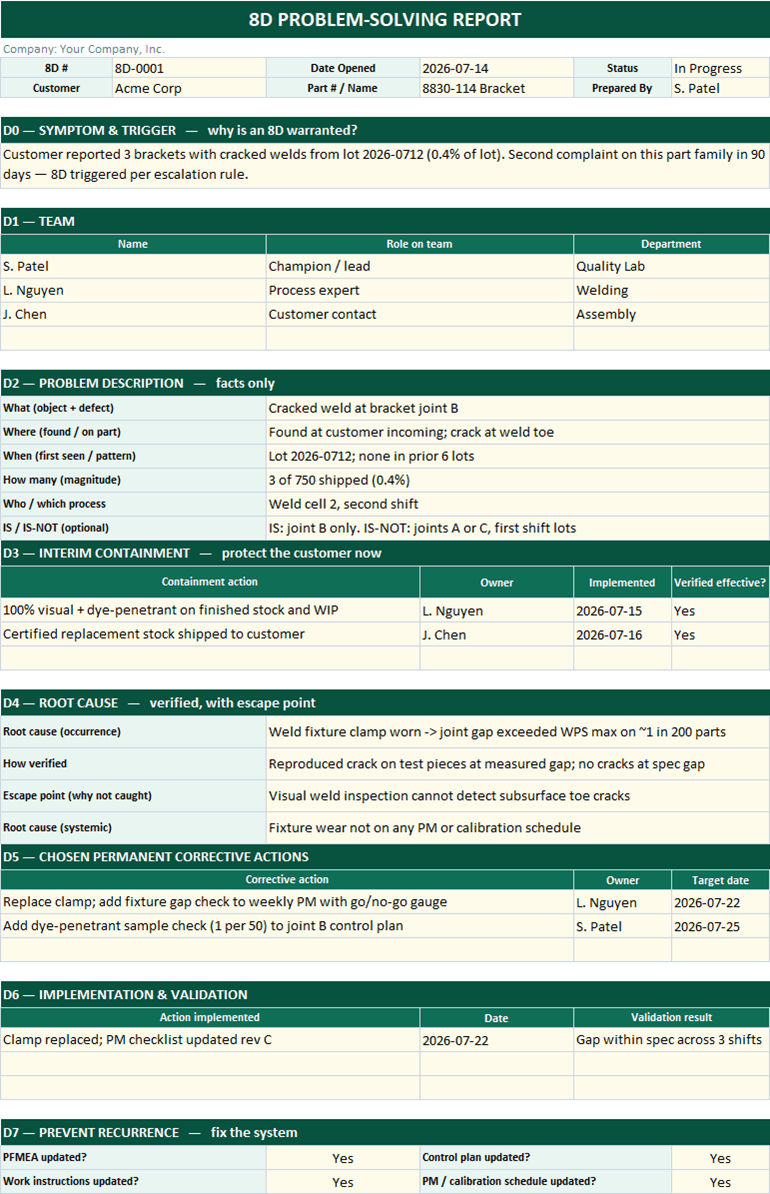

- A complete worked example (cracked-weld investigation) showing the level of detail that satisfies a customer SQE — overwrite it with your problem

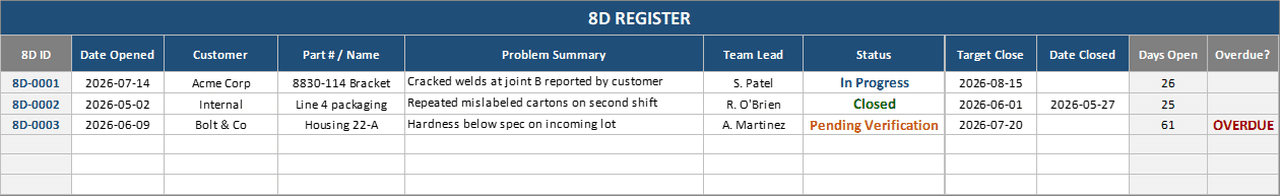

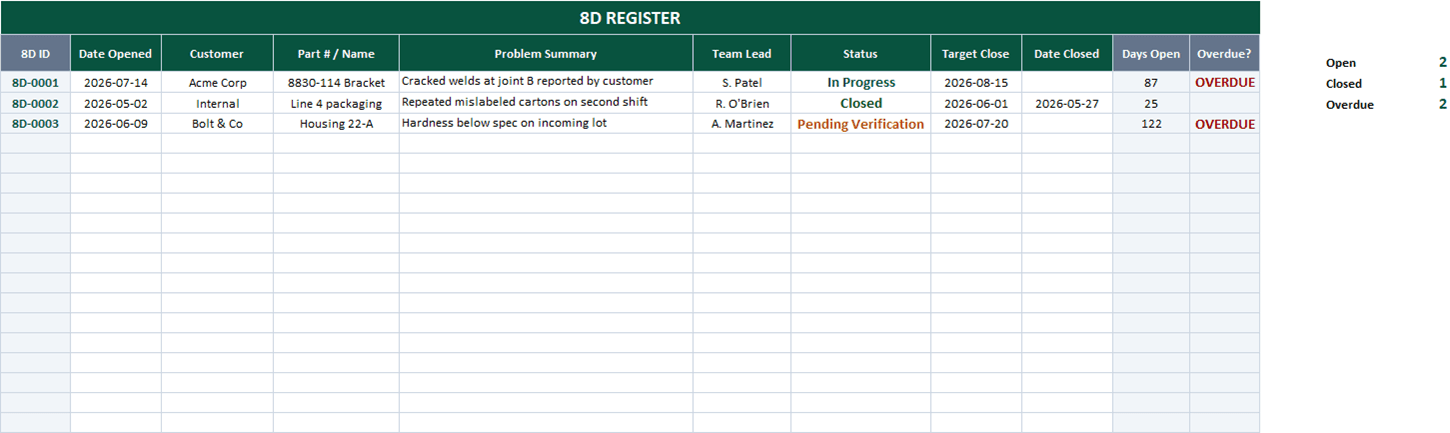

- Multi-8D register: type a problem summary and the ID (8D-0001…) fills in automatically, with days-open and OVERDUE flags
- Team and department dropdowns editable on the CONFIG sheet
- D7 prevention checklist covers the documents auditors ask about: PFMEA, control plan, work instructions, PM schedules
- Pre-set to print one page wide — hand it to the customer as-is
- 100% macro-free — works in Excel 2010+ on Windows and Mac, no security prompts
The zip contains the workbook (.xlsx) and a README quick-start. Run one 8D per copy of the report sheet (right-click the tab → Create a copy).
Where this spreadsheet breaks
A form gives the 8D a shape. It can’t make the discipline happen — and customers notice:
1.D4 gets written before the analysis
Under deadline pressure, "root cause" gets typed straight into the box — no method, no evidence, no verification. The customer’s SQE reads it in ten seconds.
NominalQC’s CAPA workflow has guided 8D, 5-Why, and fishbone worksheets built in — the analysis happens inside the record, and its conclusions promote into the official root cause with the method on file.
2.The 8D closes but the actions don’t
Once the report ships, the D5–D7 actions live in a spreadsheet nobody reopens. Six months later the same failure mode is back and the old 8D is evidence against you.
NominalQC refuses to close a CAPA until corrective actions and an effectiveness check are on record — with owner names and timestamps stamped automatically.
3.Every 8D is a fresh Word document
The report, the NCR that triggered it, and the containment evidence live in three different files — so assembling a submittable package is an evening of copy-paste.
NominalQC prints a customer-submittable 8D Response Report straight from the CAPA — your logo, D1–D8 sections, embedded analysis tables, signature lines, and the originating NCR cited.
Who built this
I spent 16 years in manufacturing quality — machining, fabrication, assembly — and in every shop I ended up building the same Excel tools with macros because the software budget went elsewhere. These workbooks are the ones I kept rebuilding. Eventually I stopped rebuilding spreadsheets and built NominalQC instead — but the spreadsheet is still the right starting point for a lot of shops, so here they are, cleaned up and free.
Questions
Is it really free?
Yes. You get the full workbook and the setup guide in exchange for an email address. Two short follow-up emails about running the process, then silence — unsubscribe anytime.
Does it work on Mac or older Excel?
Yes — this workbook is 100% macro-free, so there’s no "Enable Content" prompt and it works in Excel 2010 or later on Windows and Mac.
When should we use an 8D instead of a simple corrective action?
Use 8D when the problem earned it: a customer escape, a safety issue, a repeat failure, or anything a customer formally requests an 8D for. The method’s value is the discipline — real containment, a verified root cause, and systemic prevention. For minor internal issues, a simple CAPA is often enough; this template pairs with the free CAPA Log for exactly that.
Can I change the lists and dropdowns?
Yes — every dropdown pulls from the CONFIG sheet (your people, work centers, categories), and it’s all editable with no code involved. That’s the point: it should match your process, not ours.
